Mesh storage cages

2,230mm high · grey or galvanised · from £577.32 plus VAT

ProvisionalProvisional prices, until our margin is set.

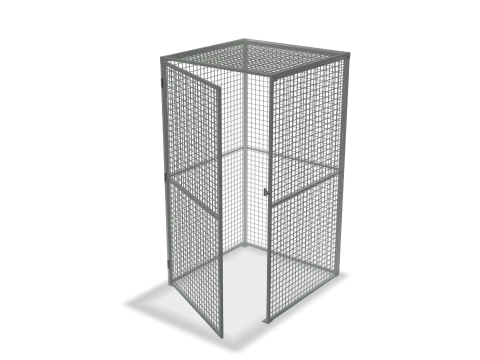

  • Drawing of the Mini Box in grey: a mesh cage 2,230 x 1,200 x 1,200mm with one door at the front.

    Mini Box

    £577.32£778.04 plus VAT

    2,230 x 1,200 x 1,200mm · 5 panels · UK800298UK800299

    Finish of the Mini Box

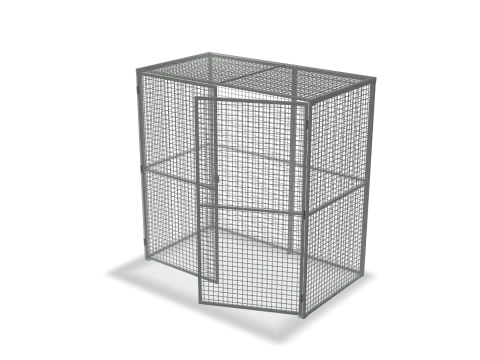

  • Drawing of the Maxi Box 1 in grey: a mesh cage 2,230 x 2,200 x 1,200mm with double doors at the front.

    Maxi Box 1

    £706.41£953.07 plus VAT

    2,230 x 2,200 x 1,200mm · 7 panels · UK800295UK800296

    Finish of the Maxi Box 1

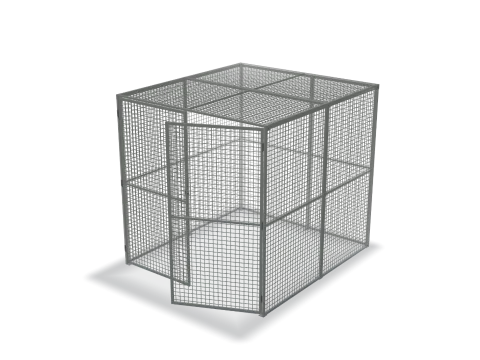

  • Drawing of the Maxi Box 2 in grey: a mesh cage 2,230 x 2,200 x 2,400mm with double doors at the front.

    Maxi Box 2

    £996.02£1,352.37 plus VAT

    2,230 x 2,200 x 2,400mm · 10 panels · UK800293UK800294

    Finish of the Maxi Box 2

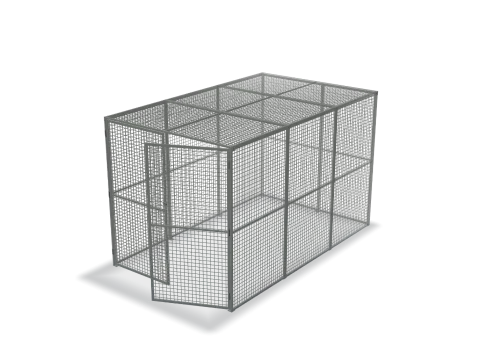

  • Drawing of the Maxi Box 3 in grey: a mesh cage 2,230 x 2,200 x 3,600mm with double doors at the front.

    Maxi Box 3

    £1,285.63£1,751.67 plus VAT

    2,230 x 2,200 x 3,600mm · 13 panels · UK800290UK800291

    Finish of the Maxi Box 3

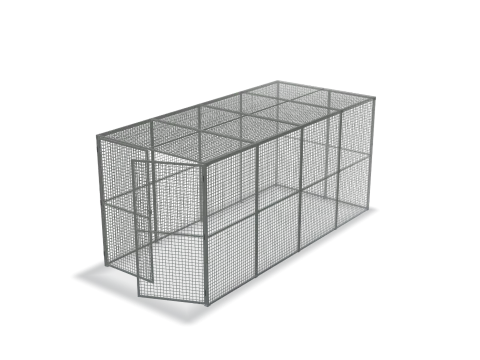

  • Drawing of the Maxi Box 4 in grey: a mesh cage 2,230 x 2,200 x 4,800mm with double doors at the front.

    Maxi Box 4

    £1,575.24£2,150.97 plus VAT

    2,230 x 2,200 x 4,800mm · 16 panels · UK800288UK800289

    Finish of the Maxi Box 4

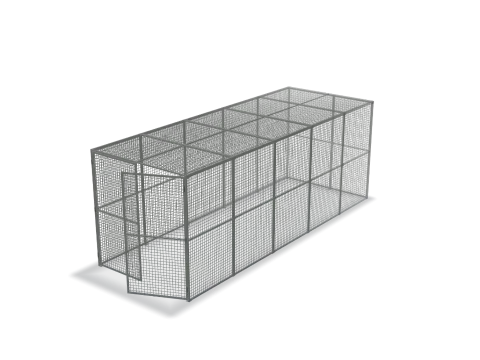

  • Drawing of the Maxi Box 5 in grey: a mesh cage 2,230 x 2,200 x 6,000mm with double doors at the front.

    Maxi Box 5

    £1,864.85£2,550.27 plus VAT

    2,230 x 2,200 x 6,000mm · 19 panels · UK800286UK800287

    Finish of the Maxi Box 5

Questions

Common questions

What fixings come with a mesh cage?

Every box comes with the fixings for a permanent siting on a concrete floor. Other floor fixings are available on request. For any other floor, tell us what it is and we will price the fixings with the order.

Should a mesh cage be grey or galvanised?

Grey (RAL 7037) is for indoors. Hot-dip galvanised is for outdoors, such as a gas bottle store in a yard. Same sizes and panels; galvanised costs more.

Can the depth of a mesh cage be changed later?

Yes. Every Maxi Box has the same 2,200mm front, and each extra 1,200mm of depth is two side panels and a roof panel. The shop sells whole boxes, so ask through the contact page for the panels to deepen one you already have.

How is delivery of a mesh cage worked out?

By the postcode area and the number of panels, from the supplier's delivery rates. Type a postcode at checkout to see it. A timed delivery adds £120.00. Northern Ireland, the Channel Islands, the Isle of Man, the Western Isles, Shetland, London EC, W and WC, and orders of 200 panels or more are priced by hand before anything is charged.

Is fitting included with a mesh cage?

No, the boxes come supply only, as panels on pallets, so someone on site needs a forklift or pallet truck to unload them. Two people put up about 30 panels a day. Tick the box at checkout and we will send a fitting price separately.
